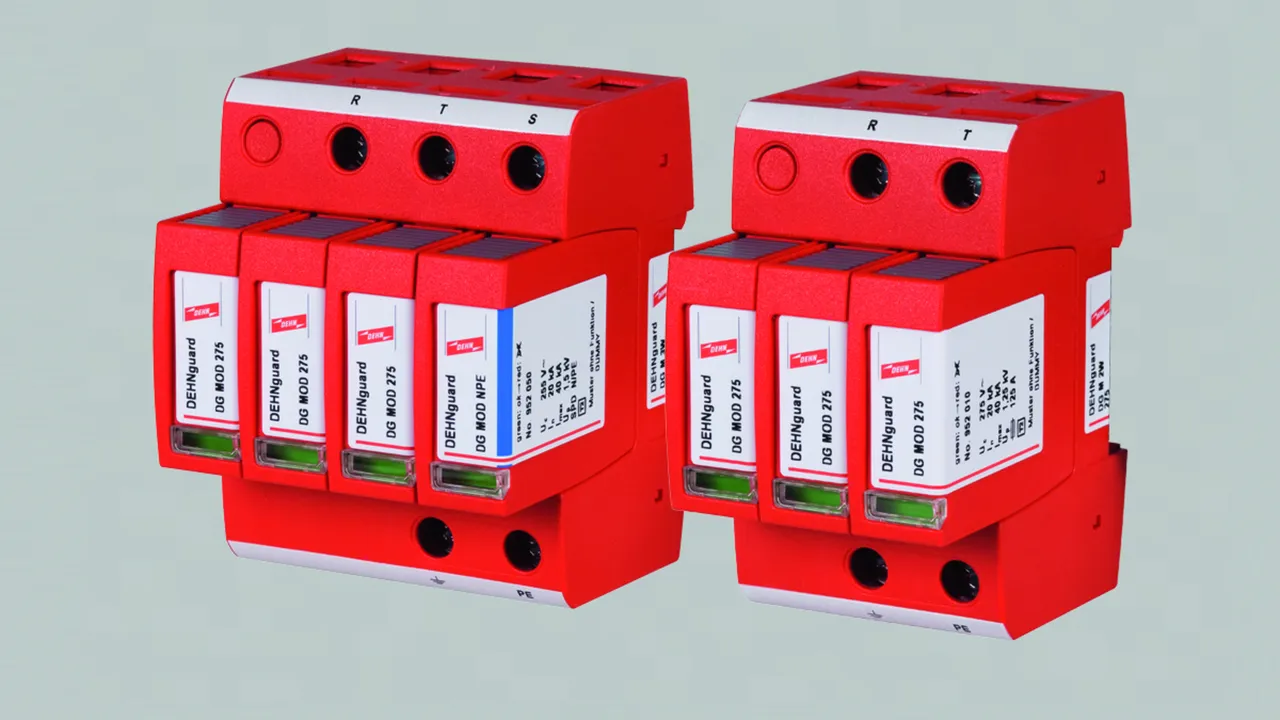

DEHNguard modular JAPAN

Complete prewired unit consisting of a base part and plug-in protection modules
Energy-coordinated within the Red/Line product family
High discharge capacity due to powerful zinc oxide varistors/spark gaps
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Multifunctional terminals for connection of conductors and busbars
Allows for easy replacing of protection modules by module locking system with releasing button
Tested for vibration- and shock-proofness acc. to EN 60068-2

DG M 2W 150

Modular surge arrester for use in 1Ø2W100V power supply systems

1 Produkt

Nr kat. 952118 DG M 2W 150

GTIN / EAN 4013364113831, Nr taryfy celnej (EU): 85363030, Waga brutto: 234.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-N] (U_P )	≤ 0.7 kV
Voltage protection level [R-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	2 mods., DIN 43880
Approvals	UL

Produkt 952118 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952118.

Idź do sklepu internetowego

DG M 2W 150 FM

Modular surge arrester for use in 1Ø2W100V power supply systems; with floating remote signalling contact

1 Produkt

Nr kat. 952119 DG M 2W 150 FM

GTIN / EAN 4013364113848, Nr taryfy celnej (EU): 85363030, Waga brutto: 232.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-N] (U_P )	≤ 0.7 kV
Voltage protection level [R-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	2 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952119 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952119.

Idź do sklepu internetowego

DG M 3W 275

Modular surge arrester for use in 3Ø3W200V power supply systems

1 Produkt

Nr kat. 952331 DG M 3W 275

GTIN / EAN 4013364114036, Nr taryfy celnej (EU): 85363030, Waga brutto: 419.80 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-T,T-S,R-S] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [S-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [S-PE] (I_imp )	12 kA
Voltage protection level [R-T, T-S, R-S] (U_P )	≤ 1.5 kV
Voltage protection level [R-T, T-S, R-S] for 5 kA (U_C )	≤ 1 V
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [S-PE] (a.c.) (I_fi )	100 A_rms
Response time [R-T,T-S,R-S] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Produkt 952331 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952331.

Idź do sklepu internetowego

DG M 3W 275 FM

Modular surge arrester for use in 3Ø3W200V power supply systems; with floating remote signalling contact

1 Produkt

Nr kat. 952339 DG M 3W 275 FM

GTIN / EAN 4013364114043, Nr taryfy celnej (EU): 85363030, Waga brutto: 441.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R-T,T-S,R-S] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [S-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [S-PE] (I_imp )	12 kA
Voltage protection level [R-T, T-S, R-S] (U_P )	≤ 1.5 kV
Voltage protection level [R-T, T-S, R-S] for 5 kA (U_C )	≤ 1 V
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [S-PE] (a.c.) (I_fi )	100 A_rms
Response time [R-T,T-S,R-S] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	Wechsler
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952339 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952339.

Idź do sklepu internetowego

DG M 4W 275

Modular surge arrester for use in 3Ø3W200V * 1Ø3W100/200V power supply systems

1 Produkt

Nr kat. 952431 DG M 4W 275

GTIN / EAN 4013364114098, Nr taryfy celnej (EU): 85363030, Waga brutto: 430.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V*1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R,S,T-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [R,S,T-N] (I_n )	20 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R,S,T-N] (U_P )	≤ 1.5 kV
Voltage protection level [R,S,T-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R,S,T-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Produkt 952431 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952431.

Idź do sklepu internetowego

DG M 4W 275 FM

Modular surge arrester for use in 3Ø3W200V power supply systems; with floating remote signalling contact

1 Produkt

Nr kat. 952439 DG M 4W 275 FM

GTIN / EAN 4013364114104, Nr taryfy celnej (EU): 85363030, Waga brutto: 429.40 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V*1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R,S,T-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) [R,S,T-N] (I_n )	20 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R,S,T-N] (U_P )	≤ 1.5 kV
Voltage protection level [R,S,T-N] at 5 kA (U_P )	≤ 1 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R,S,T-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952439 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952439.

Idź do sklepu internetowego

DG M 3W 275 150

Modular surge arrester for use in 1Ø3W100/200V power supply systems

1 Produkt

Nr kat. 952321 DG M 3W 275 150

GTIN / EAN 4013364114067, Nr taryfy celnej (EU): 85363030, Waga brutto: 398.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R-T] (U_C )	275 V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R,T-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-T] (I_n )	20 kA
Nominal discharge current (8/20 μs) [R,T-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-T] (U_P )	≤ 1.5 kV
Voltage protection level [R-T] for 5 kA (U_P )	≤ 1 kV
Voltage protection level [R, T-N] (U_P )	≤ 0.7 kV
Voltage protection level [R,T-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N,T-N,R-T] (t_A )	≤ 25 ns
Response time [R-T] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Safe failure
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL

Produkt 952321 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952321.

Idź do sklepu internetowego

DG M 3W 275 150 FM

Modular surge arrester for use in 1Ø3W100/200V power supply systems; with floating remote signalling contact

1 Produkt

Nr kat. 952329 DG M 3W 275 150 FM

GTIN / EAN 4013364114074, Nr taryfy celnej (EU): 85363030, Waga brutto: 441.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 2 / class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V
Maximum continuous operating voltage (a.c.) [R-T] (U_C )	275 V (50 / 60 Hz)
Maximum continuous operating voltage (a.c.) [R,T-N] (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 μs) [R-T] (I_n )	20 kA
Nominal discharge current (8/20 μs) [R,T-N] (I_n )	15 kA
Nominal discharge current (8/20 μs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 μs) (I_max )	40 kA
Lightning impulse current (10/350 μs) [N-PE] (I_imp )	12 kA
Voltage protection level [R-T] (U_P )	≤ 1.5 kV
Voltage protection level [R-T] for 5 kA (U_P )	≤ 1 kV
Voltage protection level [R, T-N] (U_P )	≤ 0.7 kV
Voltage protection level [R,T-N] for 5 kA (U_P )	≤ 0.55 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (a.c.) (I_fi )	100 A_eff
Response time [R-N,T-N,R-T] (t_A )	≤ 25 ns
Response time [R-T] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	125 A gG
Short circuit withstand capability for max. mains-side overcurrent	50 kA_rms
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Safe failure
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Safe failure
Operating temperature range (T_U )	-40°C...+80°C
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rail acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimension	4 mods., DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 952329 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952329.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNguard modular JAPAN

DG M 2W 150

Nr kat. 952118 DG M 2W 150

Produkt 952118 został dodany do notatnika.

Do koszyka dodano produkt 952118.

DG M 2W 150 FM

Nr kat. 952119 DG M 2W 150 FM

Produkt 952119 został dodany do notatnika.

Do koszyka dodano produkt 952119.

DG M 3W 275

Nr kat. 952331 DG M 3W 275

Produkt 952331 został dodany do notatnika.

Do koszyka dodano produkt 952331.

DG M 3W 275 FM

Nr kat. 952339 DG M 3W 275 FM

Produkt 952339 został dodany do notatnika.

Do koszyka dodano produkt 952339.

DG M 4W 275

Nr kat. 952431 DG M 4W 275

Produkt 952431 został dodany do notatnika.

Do koszyka dodano produkt 952431.

DG M 4W 275 FM

Nr kat. 952439 DG M 4W 275 FM

Produkt 952439 został dodany do notatnika.

Do koszyka dodano produkt 952439.

DG M 3W 275 150

Nr kat. 952321 DG M 3W 275 150

Produkt 952321 został dodany do notatnika.

Do koszyka dodano produkt 952321.

DG M 3W 275 150 FM

Nr kat. 952329 DG M 3W 275 150 FM

Produkt 952329 został dodany do notatnika.

Do koszyka dodano produkt 952329.
