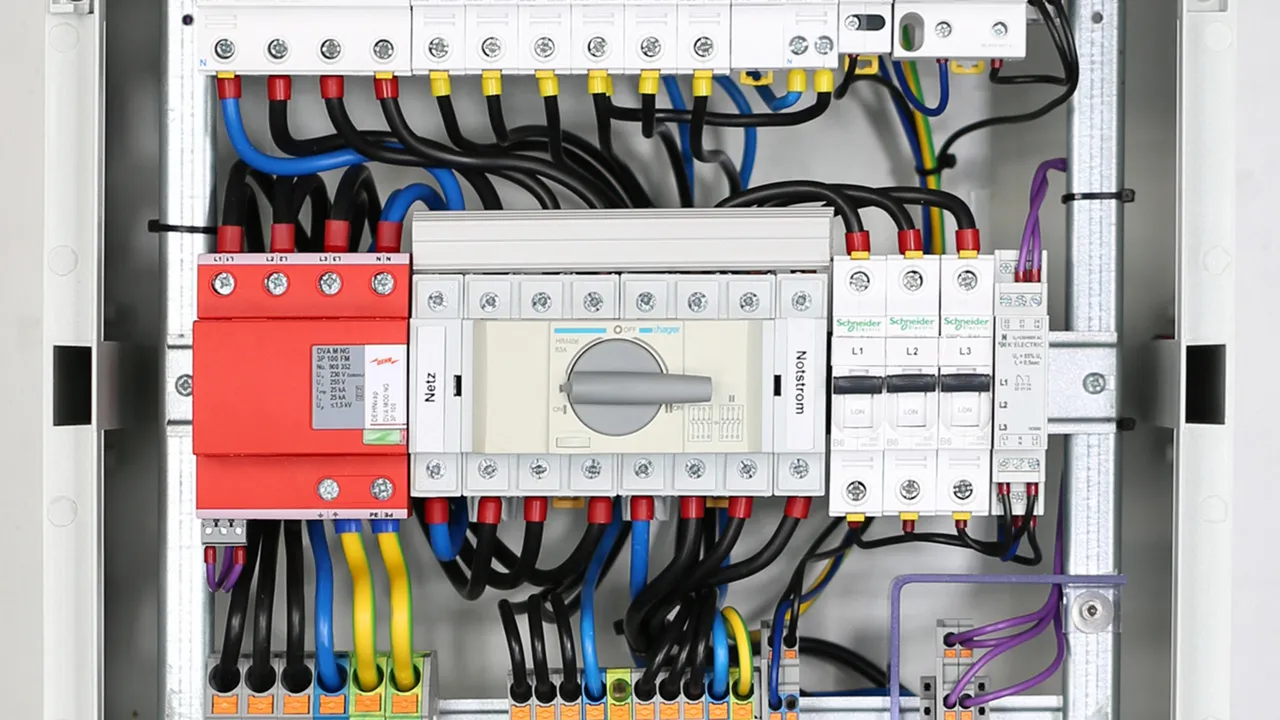

Nr kat. 900352 DVA M NG 3P 100 FM

GTIN / EAN 4013364455931, Nr taryfy celnej (EU): 85363090, Waga brutto: 598.33 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: DVA M NG 3P 100 FM
Part No.: 900352
or equivalent.

Dane techniczne

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Produkt 900352 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900352.

Idź do sklepu internetowego

Nr kat. 900351 DVA M NG 1P 50 FM

GTIN / EAN 4013364455948, Nr taryfy celnej (EU): 85363090, Waga brutto: 320.37 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: DVA M NG 1P 50 FM
Part No.: 900351
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Produkt 900351 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900351.

Idź do sklepu internetowego

Nr kat. 900360 DVA CSP 3P 100 FM

GTIN / EAN 4013364111332, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.34 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Brand: DEHN
Type: DVA CSP 3P 100 FM
Part No.: 900360
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	315 A gG
Max. backup fuse (L) up to I_K > 25 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C / -40°C...+60°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (L1', L2', L3', N', 9 ) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900360 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900360.

Idź do sklepu internetowego

Nr kat. 900367 DVA CSP 3P 100 S FM

GTIN / EAN 4013364322288, Nr taryfy celnej (EU): 85363090, Waga brutto: 529.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNvap CSP 3P 100 S FMTT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Width: 4 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 3P 100 S FM
Part No.: 900367
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	≤ 2.0 kV

Produkt 900367 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900367.

Idź do sklepu internetowego

Nr kat. 900366 DVA CSP 1P 50 S FM

GTIN / EAN 4013364374669, Nr taryfy celnej (EU): 85363090, Waga brutto: 265.52 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

DEHNvap CSP 1P 50 S FM combined arrester
Two-pole combined arrester
for 230/400 V TT systems,
SPD type 1 + type 2 in accordance with EN 61643-11
Width: 2 mod., With remote signalling contact
For use in compact and simply equipped electrical
installations with reduced technical requirements
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 1P 50 S FM
Part No.: 900366
or equivalent.

Certyfikaty

Dane techniczne

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Produkt 900366 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 900366.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNvap

DVA M NG 3P 100 FM

Nr kat. 900352 DVA M NG 3P 100 FM

Produkt 900352 został dodany do notatnika.

Do koszyka dodano produkt 900352.

DVA M NG 1P 50 FM

Nr kat. 900351 DVA M NG 1P 50 FM

Produkt 900351 został dodany do notatnika.

Do koszyka dodano produkt 900351.

DVA CSP 3P 100 FM

Nr kat. 900360 DVA CSP 3P 100 FM

Produkt 900360 został dodany do notatnika.

Do koszyka dodano produkt 900360.

DVA CSP 3P 100 S FM

Nr kat. 900367 DVA CSP 3P 100 S FM

Produkt 900367 został dodany do notatnika.

Do koszyka dodano produkt 900367.

DVA CSP 1P 50 S FM

Nr kat. 900366 DVA CSP 1P 50 S FM

Produkt 900366 został dodany do notatnika.

Do koszyka dodano produkt 900366.

DEHNvap

DVA M NG 3P 100 FM

Nr kat. 900352 DVA M NG 3P 100 FM

Nie masz uprawnień, by pobrać 900352.stp

Nie masz uprawnień, by pobrać 900352.igs

Nie masz uprawnień, by pobrać 900352.jt

Nie masz uprawnień, by pobrać 900352.dwg

Nie masz uprawnień, by pobrać 900352m_D.dxf

Nie masz uprawnień, by pobrać DEHN.900352.edz

Produkt 900352 został dodany do notatnika.

Do koszyka dodano produkt 900352.

DVA M NG 1P 50 FM

Nr kat. 900351 DVA M NG 1P 50 FM

Nie masz uprawnień, by pobrać 900351.stp

Nie masz uprawnień, by pobrać 900351.igs

Nie masz uprawnień, by pobrać 900351.jt

Nie masz uprawnień, by pobrać 900351.dwg

Nie masz uprawnień, by pobrać 900351m_D.dxf

Nie masz uprawnień, by pobrać DEHN.900351.edz

Produkt 900351 został dodany do notatnika.

Do koszyka dodano produkt 900351.

DVA CSP 3P 100 FM

Nr kat. 900360 DVA CSP 3P 100 FM

Nie masz uprawnień, by pobrać 900360.stp

Nie masz uprawnień, by pobrać 900360.igs

Nie masz uprawnień, by pobrać 900360.jt

Nie masz uprawnień, by pobrać 900360.dwg

Nie masz uprawnień, by pobrać 900360.dxf

Produkt 900360 został dodany do notatnika.

Do koszyka dodano produkt 900360.

DVA CSP 3P 100 S FM

Nr kat. 900367 DVA CSP 3P 100 S FM

Nie masz uprawnień, by pobrać 900367.stp

Nie masz uprawnień, by pobrać 900367.igs

Nie masz uprawnień, by pobrać 900367.jt

Nie masz uprawnień, by pobrać 900367.dwg

Nie masz uprawnień, by pobrać 900367.dxf

Produkt 900367 został dodany do notatnika.

Do koszyka dodano produkt 900367.

DVA CSP 1P 50 S FM

Nr kat. 900366 DVA CSP 1P 50 S FM

Nie masz uprawnień, by pobrać 900366.stp

Nie masz uprawnień, by pobrać 900366.igs

Nie masz uprawnień, by pobrać 900366.jt

Nie masz uprawnień, by pobrać 900366.dwg

Nie masz uprawnień, by pobrać 900367.dxf

Produkt 900366 został dodany do notatnika.

Do koszyka dodano produkt 900366.
