Nr kat. 840008 RD 8 ALMGSI HH R148M

GTIN / EAN 4013364018730, Nr taryfy celnej (EU): 76052100, Waga brutto: 135.00 g/m, Jednostka opakowaniowa: 148.00 m

Rysunki

Informacje dodatkowe

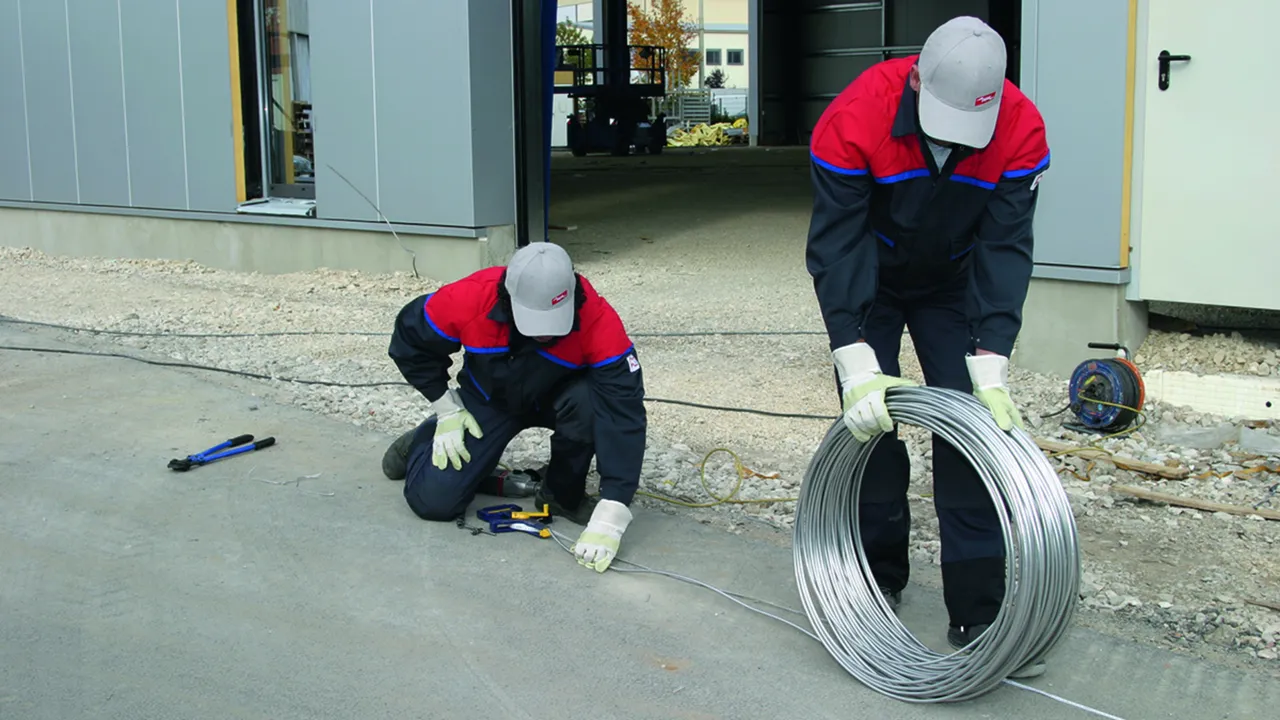

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, semi-rigid
Round wire according to EN 62561-2
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: semi-rigid
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI HH R148M
Part No.: 840008
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Produkt 840008 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840008.

Idź do sklepu internetowego

Nr kat. 840108 RD 8 ALMGSI HH R21M

GTIN / EAN 4013364080423, Nr taryfy celnej (EU): 76052100, Waga brutto: 135.00 g/m, Jednostka opakowaniowa: 21.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, semi-rigid
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: semi-rigid
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI HH R21M
Part No.: 840108
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	semi-rigid
Standard	EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Produkt 840108 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840108.

Idź do sklepu internetowego

Nr kat. 840018 RD 8 ALMGSI WEI R148M

GTIN / EAN 4013364035706, Nr taryfy celnej (EU): 76052100, Waga brutto: 135.00 g/m, Jednostka opakowaniowa: 148.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSI, soft, twistable
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft, twistable
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI WEI R148M
Part No.: 840018
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Produkt 840018 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840018.

Idź do sklepu internetowego

Nr kat. 840028 RD 8 ALMGSI WEI R21M

GTIN / EAN 4013364131163, Nr taryfy celnej (EU): 76052100, Waga brutto: 135.00 g/m, Jednostka opakowaniowa: 21.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire, 8 mm / 50 mm², AlMgSi, soft, twistable
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft, twistable
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 ALMGSI WEI R21M
Part No.: 840028
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft, twistable
Standard	based on EN 62561-2
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Produkt 840028 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840028.

Idź do sklepu internetowego

Nr kat. 840010 RD 10 Al WEI R100M

GTIN / EAN 4013364018747, Nr taryfy celnej (EU): 76051100, Waga brutto: 210.00 g/m, Jednostka opakowaniowa: 100.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire, 10 mm / 78 mm², Al, soft, twistable
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: Al
Characteristics: soft, twistable
Standard: EN 62561-2

Brand: DEHN
Type: RD 10 Al WEI R100M
Part No.: 840010
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	Al
Characteristics	soft, twistable
Standard	EN 62561-2
Conductivity	≥ 35.71 m / Ohm mm²
Resistivity	≤ 0.028 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	10 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	Al
Characteristics	soft, twistable
Standard	EN 62561-2
Conductivity	≥ 35.71 m / Ohm mm²
Resistivity	≤ 0.028 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	10 kA
Length tolerance	+/- 5%
Note: Al and AlMgSi may not be installed directly (without a gap) on, in, or under plaster, mortar or concrete, and also not in soil.

Produkt 840010 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840010.

Idź do sklepu internetowego

Nr kat. 840118 RD 8 ALMGSI WE KM R100M

GTIN / EAN 4013364071483, Nr taryfy celnej (EU): 76052100, Waga brutto: 200.00 g/m, Jednostka opakowaniowa: 100.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire w. plastic sheath, 8 mm / 50 mm², AlMgSi, soft
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: AlMgSi
Characteristics: soft
Standard: based on EN 62561-2
Outside diameter Ø : 11 mm
RAL colour tone: Light grey – 7035

Brand: DEHN
Type: RD 8 ALMGSI WE KM R100M
Part No.: 840118
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	AlMgSi
Characteristics	soft
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Produkt 840118 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840118.

Idź do sklepu internetowego

Nr kat. 840128 RD 8 AL WE KM R100M

GTIN / EAN 4013364160002, Nr taryfy celnej (EU): 76052100, Waga brutto: 200.00 g/m, Jednostka opakowaniowa: 100.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNalu wire with plastic sheath, 8 mm / 50 mm², Al, soft
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Al
Characteristics: soft
Standard: EN 62561-2
Outside diameter Ø : 11 mm
RAL colour tone: Light grey – 7035

Brand: DEHN
Type: RD 8 AL WE KM R100M
Part No.: 840128
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al
Characteristics	soft
Standard	EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al
Characteristics	soft
Standard	EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 27.77 m / Ohm mm²
Resistivity	≤ 0.036 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	6.4 kA
Length tolerance	+/- 5%

Produkt 840128 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 840128.

Idź do sklepu internetowego

Nr kat. 833008 RD 8 AL CU WEI R110M

GTIN / EAN 4013364151987, Nr taryfy celnej (EU): 76051100, Waga brutto: 182.00 g/m, Jednostka opakowaniowa: 110.00 m

Rysunki

Informacje dodatkowe

Round wire - DEHNcupal wire 8 mm / 50 mm² Al/Cu, soft, twistable
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Al / Cu
Characteristics: soft, twistable
Standard: based on EN 62561-2
Cu sheath: min. 0.26 mm

Brand: DEHN
Type: RD 8 AL CU WEI R110M
Part No.: 833008
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al / Cu
Characteristics	soft, twistable
Standard	based on EN 62561-2
Cu sheath	min. 0.26 mm
Conductivity	≥ 27.77 (Al) m / Ohm mm²
Resistivity	≤ 0.036 (Al) Ohm mm²/ m
Length tolerance	+/- 5%
Note: DEHNcupal wire can be twisted or straightened using a wire straightening device.

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Al / Cu
Characteristics	soft, twistable
Standard	based on EN 62561-2
Cu sheath	min. 0.26 mm
Conductivity	≥ 27.77 (Al) m / Ohm mm²
Resistivity	≤ 0.036 (Al) Ohm mm²/ m
Length tolerance	+/- 5%
Note: DEHNcupal wire can be twisted or straightened using a wire straightening device.

Produkt 833008 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 833008.

Idź do sklepu internetowego

Nr kat. 830008 RD 8 CU F20 WEI R100M

GTIN / EAN 4013364018785, Nr taryfy celnej (EU): 74081100, Waga brutto: 448.00 g/m, Jednostka opakowaniowa: 100.00 m

Rysunki

Informacje dodatkowe

Round wire - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F20 WEI R100M
Part No.: 830008
or equivalent.

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Produkt 830008 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 830008.

Idź do sklepu internetowego

Nr kat. 830108 RD 8 CU F20 WEI R20M

GTIN / EAN 4013364080430, Nr taryfy celnej (EU): 74081100, Waga brutto: 448.00 g/m, Jednostka opakowaniowa: 20.00 m

Rysunki

Informacje dodatkowe

Round wires - Copper wire, 8 mm / 50 mm², Cu, soft, F20
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: soft F20
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F20 WEI R20M
Part No.: 830108
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	soft F20
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Produkt 830108 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 830108.

Idź do sklepu internetowego

Nr kat. 830038 RD 8 CU F25 HH R100M

GTIN / EAN 4013364035690, Nr taryfy celnej (EU): 74081100, Waga brutto: 448.00 g/m, Jednostka opakowaniowa: 100.00 m

Rysunki

Informacje dodatkowe

Round wires - Copper wire, 8 mm / 50 mm², Cu, semi-rigid F25
Round wire according to EN 62561-2 for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: Cu
Characteristics: semi-rigid F25
Standard: EN 62561-2

Brand: DEHN
Type: RD 8 CU F25 HH R100M
Part No.: 830038
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	semi-rigid F25
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	Cu
Characteristics	semi-rigid F25
Standard	EN 62561-2
Conductivity	≥ 52.63 m / Ohm mm²
Resistivity	≤ 0.019 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	9.7 kA
Length tolerance	+/- 5%

Produkt 830038 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 830038.

Idź do sklepu internetowego

Nr kat. 800008 RD 8 STTZN R127M

GTIN / EAN 4013364018716, Nr taryfy celnej (EU): 72172030, Waga brutto: 394.00 g/m, Jednostka opakowaniowa: 127.00 m

Rysunki

Informacje dodatkowe

Round wires - Steel wire, 8 mm / 50 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 STTZN R127M
Part No.: 800008
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Produkt 800008 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800008.

Idź do sklepu internetowego

Nr kat. 800028 RD 8 STTZN R50M

GTIN / EAN 4013364508446, Nr taryfy celnej (EU): 72172030, Waga brutto: 394.00 g/m, Jednostka opakowaniowa: 50.00 m

Rysunki

Informacje dodatkowe

Round wires - Steel wire, 8 mm / 50 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use as air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 STTZN R50M
Part No.: 800028
or equivalent.

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Produkt 800028 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800028.

Idź do sklepu internetowego

Nr kat. 800010 RD 10 STTZN R81M

GTIN / EAN 4013364018723, Nr taryfy celnej (EU): 72172030, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 81.00 m

Rysunki

Informacje dodatkowe

Round wires - Steel wire, 10 mm / 78 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202)
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN R81M
Part No.: 800010
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Produkt 800010 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800010.

Idź do sklepu internetowego

Nr kat. 800310 RD 10 STTZN R30M

GTIN / EAN 4013364131064, Nr taryfy celnej (EU): 72172030, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 30.00 m

Rysunki

Informacje dodatkowe

Round wires - steel wire, 10 mm / 78 mm², St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN R30M
Part No.: 800310
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Produkt 800310 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800310.

Idź do sklepu internetowego

Nr kat. 800906 RD 10 STTZN L1000

GTIN / EAN 4013364486829, Nr taryfy celnej (EU): 72149939, Waga brutto: 641.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Round wires - steel wire 10 mm / 78 mm², 1000 mm long, St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for
use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L1000
Part No.: 800906
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	1 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	1 m
Length tolerance	+/- 5%

Produkt 800906 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800906.

Idź do sklepu internetowego

Nr kat. 800908 RD 10 STTZN L2000

GTIN / EAN 4013364486836, Nr taryfy celnej (EU): 72149939, Waga brutto: 1.28 kg, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Round wires - steel wire 10 mm / 78 mm², 2000 mm long, St/tZn
Round wire according to DIN EN 62561-2 (VDE 0185 Part 202) for
use in lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L2000
Part No.: 800908
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	2 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	2 m
Length tolerance	+/- 5%

Produkt 800908 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800908.

Idź do sklepu internetowego

Nr kat. 800910 RD 10 STTZN L3000

GTIN / EAN 4013364253315, Nr taryfy celnej (EU): 72149939, Waga brutto: 1.85 kg, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Round wires - steel wire 10 mm / 78 mm², 3000 mm long, St/tZn
Round wire according to EN 62561-2
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L3000
Part No.: 800910
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	3 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	3 m
Length tolerance	+/- 5%

Produkt 800910 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800910.

Idź do sklepu internetowego

Nr kat. 800911 RD 10 STTZN L6000

GTIN / EAN 4013364273689, Nr taryfy celnej (EU): 72149939, Waga brutto: 4.10 kg/Stk, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Round wires - steel wire 10 mm / 78 mm², 6000 mm long, St/tZn
Round wire according to EN 62561-2
for use in lightning protection or earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 STTZN L6000
Part No.: 800911
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	6 m
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length	6 m
Length tolerance	+/- 5%

Produkt 800911 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800911.

Idź do sklepu internetowego

Nr kat. 800108 RD 8 KM STTZN R75M

GTIN / EAN 4013364018754, Nr taryfy celnej (EU): 72179020, Waga brutto: 440.00 g/m, Jednostka opakowaniowa: 75.00 m

Rysunki

Informacje dodatkowe

Round wires - Steel wire with plastic sheath, 8 mm / 50 mm², St/tZn
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: St/tZn
Standard: based on EN 62561-2
Outside diameter Ø : 11 mm

Brand: DEHN
Type: RD 8 KM STTZN R75M
Part No.: 800108
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	11 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Design	UV-stabilised
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.15 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	3.5 kA
Length tolerance	+/- 5%

Produkt 800108 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800108.

Idź do sklepu internetowego

Nr kat. 800110 RD 10 KM STTZN R50M

GTIN / EAN 4013364018761, Nr taryfy celnej (EU): 72179020, Waga brutto: 680.00 g/m, Jednostka opakowaniowa: 50.00 m

Rysunki

Informacje dodatkowe

Round wires - Steel wire with plastic sheath, 10 mm / 78 mm², St/tZn
Round wire with plastic sheath according to EN 62561-2
for use as a down conductor or connection lug in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: St/tZn
Standard: based on EN 62561-2
Outside diameter Ø : 13 mm

Brand: DEHN
Type: RD 10 KM STTZN R50M
Part No.: 800110
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	13 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	St/tZn
Standard	based on EN 62561-2
Outside diameter Ø	13 mm
Material of sheath	plastic
Sheath thickness	1.5 mm
Design	UV-stabilised
Zinc sheath	≥ 50 µm average (about 350 g/m²)
Conductivity	≥ 6.66 m / Ohm mm²
Resistivity	≤ 0.25 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	5.5 kA
Length tolerance	+/- 5%

Produkt 800110 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 800110.

Idź do sklepu internetowego

Nr kat. 860908 RD 8 V2A R125M

GTIN / EAN 4013364019362, Nr taryfy celnej (EU): 72210010, Waga brutto: 395.00 g/m, Jednostka opakowaniowa: 125.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 8 mm / 50 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 V2A R125M
Part No.: 860908
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Produkt 860908 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860908.

Idź do sklepu internetowego

Nr kat. 860920 RD 10 V2A R20M

GTIN / EAN 4013364092679, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 20.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R20M
Part No.: 860920
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860920 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860920.

Idź do sklepu internetowego

Nr kat. 860950 RD 10 V2A R50M

GTIN / EAN 4013364155596, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 50.00 m

Rysunki

Informacje dodatkowe

Round wires - StSt wire, 10 mm / 78 mm², StSt
Round wire according to 62561-2
for use as an air-termination system or down
conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R50M
Part No.: 860950
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860950 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860950.

Idź do sklepu internetowego

Nr kat. 860910 RD 10 V2A R80M

GTIN / EAN 4013364019300, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 80.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt
Round wire according to EN 62561-2
for use as an air-termination system or down conductor in lightning protection systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt
Material No.: 1.4301 / 1.4303
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V2A R80M
Part No.: 860910
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt
Material No.	1.4301 / 1.4303
Standard	based on EN 62561-2
Conductivity	≥1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860910 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860910.

Idź do sklepu internetowego

Nr kat. 860008 RD 8 V4A R125M

GTIN / EAN 4013364018808, Nr taryfy celnej (EU): 72210010, Waga brutto: 395.00 g/m, Jednostka opakowaniowa: 125.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 8 mm / 50 mm², StSt (V4A)
Round wire according to EN 62561-2
for use in lightning protection and earth-termination systems.
Diameter Ø conductor: 8 mm
Cross-section: 50 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 8 V4A R125M
Part No.: 860008
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	8 mm
Cross-section	50 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	1.9 kA
Length tolerance	+/- 5%

Produkt 860008 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860008.

Idź do sklepu internetowego

Nr kat. 860010 RD 10 V4A R80M

GTIN / EAN 4013364019997, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 80.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R80M
Part No.: 860010
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860010 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860010.

Idź do sklepu internetowego

Nr kat. 860020 RD 10 V4A R20M

GTIN / EAN 4013364092662, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 20.00 m

Rysunki

Informacje dodatkowe

Round wires - Stainless steel wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R20M
Part No.: 860020
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860020 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860020.

Idź do sklepu internetowego

Nr kat. 860050 RD 10 V4A R50M

GTIN / EAN 4013364139923, Nr taryfy celnej (EU): 72210010, Waga brutto: 617.00 g/m, Jednostka opakowaniowa: 50.00 m

Rysunki

Informacje dodatkowe

Round wires - StSt wire, 10 mm / 78 mm², StSt (V4A)
Round wire according to EN 62561-2
for lightning protection and earth-termination systems.
Diameter Ø conductor: 10 mm
Cross-section: 78 mm2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Standard: based on EN 62561-2

Brand: DEHN
Type: RD 10 V4A R50M
Part No.: 860050
or equivalent.

Certyfikaty

Dane techniczne

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Diameter Ø conductor	10 mm
Cross-section	78 mm²
Material	StSt (V4A)
Material No.	1.4571 / 1.4404
ASTM / AISI:	316Ti / 316L
Standard	based on EN 62561-2
Conductivity	≥ 1.25 m / Ohm mm²
Resistivity	≤ 0.8 Ohm mm²/ m
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C)	2.9 kA
Length tolerance	+/- 5%

Produkt 860050 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 860050.

Idź do sklepu internetowego

Round Wires

DEHNalu wire

Nr kat. 840008 RD 8 ALMGSI HH R148M

Produkt 840008 został dodany do notatnika.

Do koszyka dodano produkt 840008.

Nr kat. 840108 RD 8 ALMGSI HH R21M

Produkt 840108 został dodany do notatnika.

Do koszyka dodano produkt 840108.

Nr kat. 840018 RD 8 ALMGSI WEI R148M

Produkt 840018 został dodany do notatnika.

Do koszyka dodano produkt 840018.

Nr kat. 840028 RD 8 ALMGSI WEI R21M

Produkt 840028 został dodany do notatnika.

Do koszyka dodano produkt 840028.

Nr kat. 840010 RD 10 Al WEI R100M

Produkt 840010 został dodany do notatnika.

Do koszyka dodano produkt 840010.

DEHNalu wire with plastic sheath

Nr kat. 840118 RD 8 ALMGSI WE KM R100M

Produkt 840118 został dodany do notatnika.

Do koszyka dodano produkt 840118.

Nr kat. 840128 RD 8 AL WE KM R100M

Produkt 840128 został dodany do notatnika.

Do koszyka dodano produkt 840128.

DEHNcupal wire

Nr kat. 833008 RD 8 AL CU WEI R110M

Produkt 833008 został dodany do notatnika.

Do koszyka dodano produkt 833008.

Copper wire

Nr kat. 830008 RD 8 CU F20 WEI R100M

Produkt 830008 został dodany do notatnika.

Do koszyka dodano produkt 830008.

Nr kat. 830108 RD 8 CU F20 WEI R20M

Produkt 830108 został dodany do notatnika.

Do koszyka dodano produkt 830108.

Nr kat. 830038 RD 8 CU F25 HH R100M

Produkt 830038 został dodany do notatnika.

Do koszyka dodano produkt 830038.

Steel wire

Nr kat. 800008 RD 8 STTZN R127M

Produkt 800008 został dodany do notatnika.

Do koszyka dodano produkt 800008.

Nr kat. 800028 RD 8 STTZN R50M

Produkt 800028 został dodany do notatnika.

Do koszyka dodano produkt 800028.

Nr kat. 800010 RD 10 STTZN R81M

Produkt 800010 został dodany do notatnika.

Do koszyka dodano produkt 800010.

Nr kat. 800310 RD 10 STTZN R30M

Produkt 800310 został dodany do notatnika.

Do koszyka dodano produkt 800310.

Steel wire, straightened, cut into bars

Nr kat. 800906 RD 10 STTZN L1000

Produkt 800906 został dodany do notatnika.

Do koszyka dodano produkt 800906.

Nr kat. 800908 RD 10 STTZN L2000

Produkt 800908 został dodany do notatnika.

Do koszyka dodano produkt 800908.

Nr kat. 800910 RD 10 STTZN L3000

Produkt 800910 został dodany do notatnika.

Do koszyka dodano produkt 800910.

Nr kat. 800911 RD 10 STTZN L6000

Produkt 800911 został dodany do notatnika.

Do koszyka dodano produkt 800911.

Steel wire with plastic sheath

Nr kat. 800108 RD 8 KM STTZN R75M

Produkt 800108 został dodany do notatnika.

Do koszyka dodano produkt 800108.

Nr kat. 800110 RD 10 KM STTZN R50M

Produkt 800110 został dodany do notatnika.

Do koszyka dodano produkt 800110.

Stainless steel wire

Nr kat. 860908 RD 8 V2A R125M

Produkt 860908 został dodany do notatnika.

Do koszyka dodano produkt 860908.

Nr kat. 860920 RD 10 V2A R20M

Produkt 860920 został dodany do notatnika.

Do koszyka dodano produkt 860920.

Nr kat. 860950 RD 10 V2A R50M

Produkt 860950 został dodany do notatnika.
