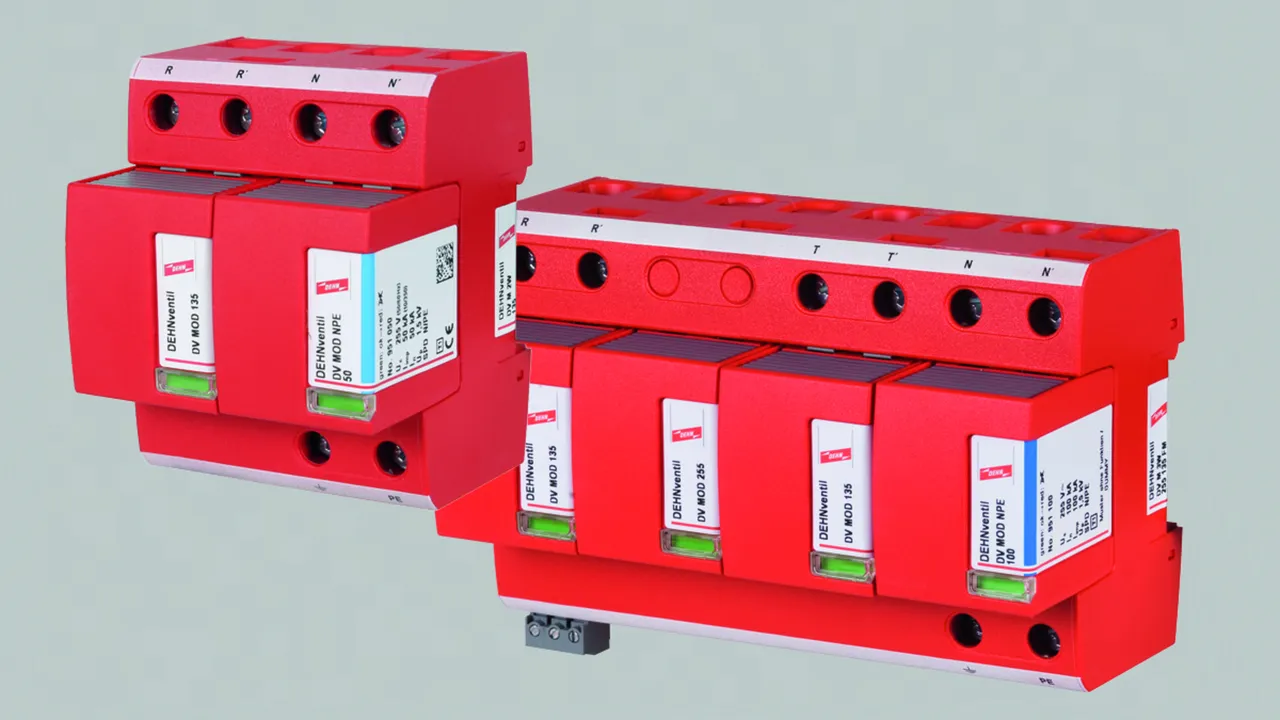

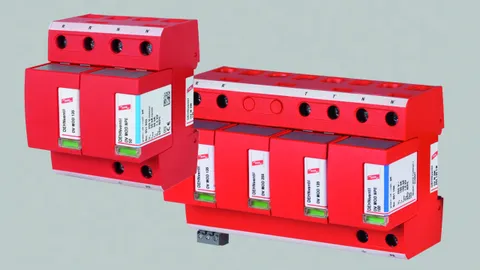

DEHNventil modular JAPAN

Prewired spark-gap-based combined lightning current and surge arrester, consisting of a base part and plug-in protection modules
Maximum system availability due to RADAX Flow follow current limitation
No tripping of 32 A gL/gG fuses up to short-circuit currents of 50 kA_rms
Discharge capacity up to 100 kA (10/350 µs)
Capable of protecting terminal equipment
Operating state / fault indication by indicator flag in the inspection window
Easy replacement of protection modules without tools due to module locking system with module release button
Vibration and shock-tested to EN 60068-2

DEHNventil M 2W 135

Modular combined lightning current and surge arrester for 1Ø2W100V power supply systems.

1 Produkt

Nr kat. 951118 DV M 2W 135

GTIN / EAN 4013364110571, Nr taryfy celnej (EU): 85363090, Waga brutto: 678.30 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage NPE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [R-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	50 kA
Nominal discharge current (8/20 µs) [R-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	50 kA
Voltage protection level [R-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´)	125 A gG
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA

Produkt 951118 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951118.

Idź do sklepu internetowego

DEHNventil M 2W 135 FM

Modular combined lightning current and surge arrester for 1Ø2W100V power supply systems; with floating remote signalling contact.

1 Produkt

Nr kat. 951119 DV M 2W 135 FM

GTIN / EAN 4013364110588, Nr taryfy celnej (EU): 85363090, Waga brutto: 682.60 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø2W100V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage NPE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [R-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	50 kA
Nominal discharge current (8/20 µs) [R-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	50 kA
Voltage protection level [R-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´)	125 A gG
Temporary overvoltage (TOV) [R-N] (U_T)	Single-phase system - No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Produkt 951119 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951119.

Idź do sklepu internetowego

DEHNventil M 3W 255

Modular combined lightning current and surge arrester for 3Ø3W200V power supply systems.

1 Produkt

Nr kat. 951331 DV M 3W 255

GTIN / EAN 4013364110632, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.29 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage S-PE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+S-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-T,S-T,R-S] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [S-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+S-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-T,S-T,R-S] (I_n )	25 kA
Nominal discharge current (8/20 µs) [S-PE] (I_n )	75 kA
Voltage protection level [R-T,S-T,R-S] (U_P )	≤ 1.5 kV
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-T,S-T,R-S] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [S-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, S, S´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, T, S, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, S´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Produkt 951331 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951331.

Idź do sklepu internetowego

DEHNventil M 3W 255 FM

Modular combined lightning current and surge arrester for 3Ø3W200V power supply systems; with floating remote signalling contact.

1 Produkt

Nr kat. 951339 DV M 3W 255 FM

GTIN / EAN 4013364110649, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.28 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage S-PE (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+S-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-T,S-T,R-S] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [S-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+S-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-T,S-T,R-S] (I_n )	25 kA
Nominal discharge current (8/20 µs) [S-PE] (I_n )	75 kA
Voltage protection level [R-T,S-T,R-S] (U_P )	≤ 1.5 kV
Voltage protection level [S-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R-T,S-T,R-S] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [S-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T,S-T,R-S] (U_T)	No TOV test required
Temporary overvoltage [S-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [S-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, S, S´, PE, 9) (min.)	10 mm² solid/flexible
Cross-sectional area (R, T, S, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, S´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Produkt 951339 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951339.

Idź do sklepu internetowego

DEHNventil M 4W 255

Modular combined lightning current and surge arrester for 3Ø3W200V * 1Ø3W100/200V power supply systems.

1 Produkt

Nr kat. 951431 DV M 4W 255

GTIN / EAN 4013364110663, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.30 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V * 1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, S, T-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+S+T+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [R, S, T-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Nominal discharge current (8/20 µs) [R+T+S+N-PE] (I_n )	100 kA
Nominal discharge current (8/20 µs) [R, S, T-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	100 kA
Voltage protection level [R, S, T-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, S, T-N] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, S, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, S, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, S-S´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, S, S´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, S, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, S´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Produkt 951431 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951431.

Idź do sklepu internetowego

DEHNventil M 4W 255 FM

Modular combined lightning current and surge arrester for 3Ø3W200V * 1Ø3W100/200V power supply systems; with floating remote signalling contact.

1 Produkt

Nr kat. 951439 DV M 4W 255 FM

GTIN / EAN 4013364110670, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.31 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	3Ø3W200V * 1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, S, T-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+S+T+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [R, S, T-N] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	100 kA
Nominal discharge current (8/20 µs) [R+T+S+N-PE] (I_n )	100 kA
Nominal discharge current (8/20 µs) [R, S, T-N] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	100 kA
Voltage protection level [R, S, T-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, S, T-N] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 50 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, S, T) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (R, S, T) at I_K> 50 kA_rms	200 A gG
Max. backup fuse (R-R´, S-S´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R,S,T-N] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, S, S´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, S, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, S´, T´, N´, 9) (max.)	35 mm2 stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Produkt 951439 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951439.

Idź do sklepu internetowego

DEHNventil M 3W 255 135

Modular combined lightning current and surge arrester for 1Ø3W100/200V power supply systems.

1 Produkt

Nr kat. 951321 DV M 3W 255 135

GTIN / EAN 4013364110601, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.36 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, T-N] (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R-T] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+N-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-N, T-N, R-T] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+N-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-N, T-N, R-T] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	75 kA
Voltage protection level [R-N,T-N, R-T] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, T-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [R-T] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, N, N´, PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (R, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Approvals	KEMA

Produkt 951321 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951321.

Idź do sklepu internetowego

DEHNventil M 3W 255 135 FM

Modular combined lightning current and surge arrester for 1Ø3W100/200V power supply systems; with floating remote signalling contact.

1 Produkt

Nr kat. 951329 DV M 3W 255 135 FM

GTIN / EAN 4013364110618, Nr taryfy celnej (EU): 85363090, Waga brutto: 1.26 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Certyfikaty

Dane techniczne

SPD acc. to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (a.c.) (U_N )	1Ø3W100/200V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R, T-N] (U_C )	135 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [R-T] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [R+T+N-PE] (I_total )	75 kA
Lightning impulse current (10/350 µs) [R-N, T-N, R-T] (I_imp )	25 kA
Lightning impulse current (10/350 µs) [N-PE] (I_imp )	75 kA
Nominal discharge current (8/20 µs) [R+T+N-PE] (I_n )	75 kA
Nominal discharge current (8/20 µs) [R-N, T-N, R-T] (I_n )	25 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	75 kA
Voltage protection level [R-N,T-N, R-T] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) [R, T-N] (I_fi )	30 kA_rms
Follow current extinguishing capability (a.c.) [R-T] (I_fi )	50 kA_rms
Follow current extinguishing capability (a.c.) [N-PE] (I_fi )	100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gL/gG fuse up to 30 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (R, T) up to I_K= 30 kA_rms	315 A gG
Max. backup fuse (R, T) at I_K> 30 kA_rms	200 A gG
Max. backup fuse (R-R´, T-T´)	125 A gG
Temporary overvoltage (TOV) [R-T] (U_T)	U_T = 220 V < U_C – No TOV test required
Temporary overvoltage [R,T-N] (U_T) – Characteristic	220 V / 120 min. – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	300 V / 2 s – Withstand
Temporary overvoltage [N-PE] (U_T) – Characteristic	600 V / 1 s – Withstand
Operating temperature range (parallel connection) (T_UP )	-40°C...+80°C
Operating temperature range (series connection) (T_US )	-40°C...+60°C
Operating state / fault indication	green / red
Cross-sectional area (R, R´, T, T´, N, N´, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (R, T, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (R´, T´, N´, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20
Dimensions	8 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Approvals	KEMA

Produkt 951329 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 951329.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

DEHNventil modular JAPAN

DEHNventil M 2W 135

Nr kat. 951118 DV M 2W 135

Produkt 951118 został dodany do notatnika.

Do koszyka dodano produkt 951118.

DEHNventil M 2W 135 FM

Nr kat. 951119 DV M 2W 135 FM

Produkt 951119 został dodany do notatnika.

Do koszyka dodano produkt 951119.

DEHNventil M 3W 255

Nr kat. 951331 DV M 3W 255

Produkt 951331 został dodany do notatnika.

Do koszyka dodano produkt 951331.

DEHNventil M 3W 255 FM

Nr kat. 951339 DV M 3W 255 FM

Produkt 951339 został dodany do notatnika.

Do koszyka dodano produkt 951339.

DEHNventil M 4W 255

Nr kat. 951431 DV M 4W 255

Produkt 951431 został dodany do notatnika.

Do koszyka dodano produkt 951431.

DEHNventil M 4W 255 FM

Nr kat. 951439 DV M 4W 255 FM

Produkt 951439 został dodany do notatnika.

Do koszyka dodano produkt 951439.

DEHNventil M 3W 255 135

Nr kat. 951321 DV M 3W 255 135

Produkt 951321 został dodany do notatnika.

Do koszyka dodano produkt 951321.

DEHNventil M 3W 255 135 FM

Nr kat. 951329 DV M 3W 255 135 FM

Produkt 951329 został dodany do notatnika.

Do koszyka dodano produkt 951329.
