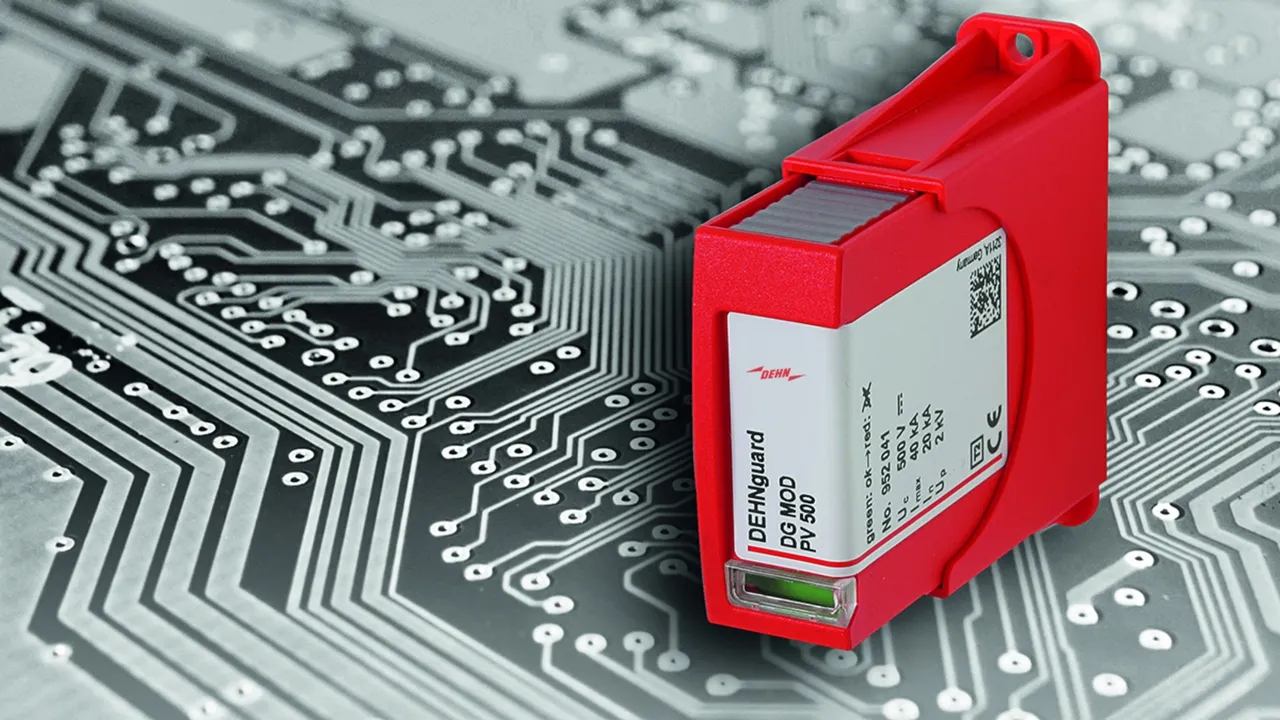

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produkty

Nr kat. 952653 DG PCB PV SCI 300

GTIN / EAN 4013364150713, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.89 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952653 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952653.

Idź do sklepu internetowego

Nr kat. 952651 DG PCB PV SCI 500

GTIN / EAN 4013364146310, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.89 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952651 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952651.

Idź do sklepu internetowego

Nr kat. 952654 DG PCB PV SCI 600

GTIN / EAN 4013364149878, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952654 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952654.

Idź do sklepu internetowego

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkty

Nr kat. 952753 DG PCB PV SCI 300 FM

GTIN / EAN 4013364150720, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952753 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952753.

Idź do sklepu internetowego

Nr kat. 952751 DG PCB PV SCI 500 FM

GTIN / EAN 4013364146327, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.49 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952751 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952751.

Idź do sklepu internetowego

Nr kat. 952754 DG PCB PV SCI 600 FM

GTIN / EAN 4013364149885, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952754 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952754.

Idź do sklepu internetowego

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produkty

Nr kat. 952643 DG PCB PV 300

GTIN / EAN 4013364150737, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.89 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952643 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952643.

Idź do sklepu internetowego

Nr kat. 952641 DG PCB PV 500

GTIN / EAN 4013364146334, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.89 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952641 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952641.

Idź do sklepu internetowego

Nr kat. 952644 DG PCB PV 600

GTIN / EAN 4013364149892, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952644 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952644.

Idź do sklepu internetowego

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkty

Nr kat. 952743 DG PCB PV 300 FM

GTIN / EAN 4013364150744, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952743 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952743.

Idź do sklepu internetowego

Nr kat. 952741 DG PCB PV 500 FM

GTIN / EAN 4013364146341, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.49 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952741 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952741.

Idź do sklepu internetowego

Nr kat. 952744 DG PCB PV 600 FM

GTIN / EAN 4013364149908, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952744 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952744.

Idź do sklepu internetowego

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Produkty

Nr kat. 952610 DG PCB 275

GTIN / EAN 4013364149816, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952610 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952610.

Idź do sklepu internetowego

Nr kat. 952614 DG PCB 385

GTIN / EAN 4013364149847, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952614 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952614.

Idź do sklepu internetowego

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produkty

Nr kat. 952710 DG PCB 275 FM

GTIN / EAN 4013364149830, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.59 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952710 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952710.

Idź do sklepu internetowego

Nr kat. 952714 DG PCB 385 FM

GTIN / EAN 4013364149854, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.59 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952714 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952714.

Idź do sklepu internetowego

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produkty

Nr kat. 952650 DG PCB NPE

GTIN / EAN 4013364149823, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Produkt 952650 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952650.

Idź do sklepu internetowego

Nr kat. 952750 DG PCB NPE FM

GTIN / EAN 4013364149861, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952750 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952750.

Idź do sklepu internetowego

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkty

Nr kat. 952941 DG PCB PV I 500 FM

GTIN / EAN 4013364228177, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952941 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952941.

Idź do sklepu internetowego

Nr kat. 952948 DG PCB PV I 600 FM

GTIN / EAN 4013364323919, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952948 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952948.

Idź do sklepu internetowego

Nr kat. 952949 DG PCB PV I 750 FM

GTIN / EAN 4013364323926, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Dane techniczne

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952949 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952949.

Idź do sklepu internetowego

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Produkt

Nr kat. 952951 DG PCB PVSCI I 500FM

GTIN / EAN 4013364228184, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952951 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952951.

Idź do sklepu internetowego

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Produkt

Nr kat. 952910 DG PCB I 275 FM

GTIN / EAN 4013364266865, Nr taryfy celnej (EU): 85366930, Waga brutto: 19.79 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certyfikaty



Dane techniczne

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952910 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952910.

Idź do sklepu internetowego

DG PCB ... UL

2 Produkty

Nr kat. 952615 DG PCB 385 UL FM

GTIN / EAN 4013364535794, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.49 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Dane techniczne

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952615 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952615.

Idź do sklepu internetowego

Nr kat. 952616 DG PCB 510 UL FM

GTIN / EAN 4013364535800, Nr taryfy celnej (EU): 85366930, Waga brutto: 20.49 g, Jednostka opakowaniowa: 72.00 pc(s)

Rysunki

Informacje dodatkowe

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Dane techniczne

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Produkt 952616 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 952616.

Idź do sklepu internetowego
Powrót na górę
