EXFS L / EXFS KU

For indirect connection / earthing of functionally isolated parts of installations under lightning conditions
For lightning equipotential bonding according to IEC 62305 in hazardous areas (zone 2)
Corrosion-resistant zinc die-cast enclosure with plastic cover and flexible cable connection
For bridging insulating joints, insulating flanges, etc. in cathodically protected pipe sections
Extremely heavy-duty device
Approval according to ATEX directive 2014/34/EU and IECEx

Szczegóły

EXFS L

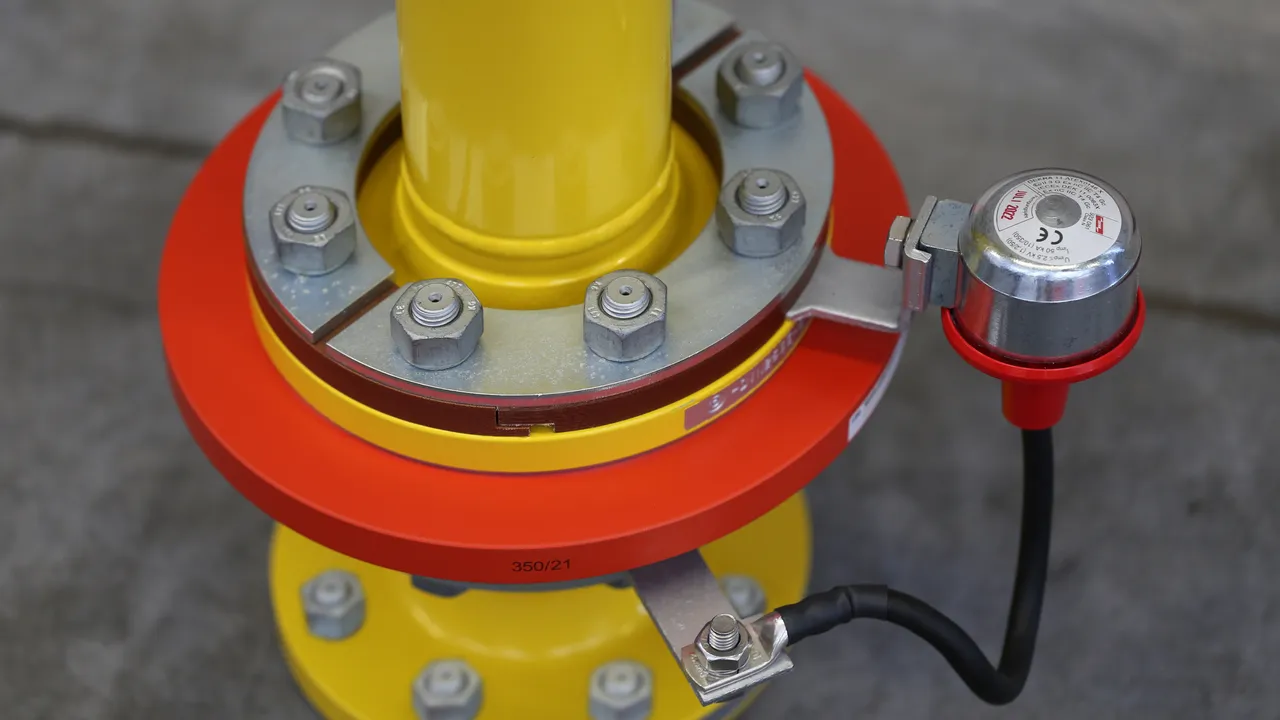

Ex isolating spark gap for aboveground installation.

3 Produkty

Nr kat. 923060 EXFS L100

GTIN / EAN 4013364038899, Nr taryfy celnej (EU): 85369095, Waga brutto: 805.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Ex isolating spak gap of type EXFS L100
Ex isolating spak gap of type EXFS L100
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 100 mm
For flange size: 20 - 130 mm

Brand: DEHN
Type: EXFS L100
Part No.: 923060
or equivalent.

Certyfikaty

Dane techniczne

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	100 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	100 mm
Suitable for flange size	20-130 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923060 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923060.

Idź do sklepu internetowego

Nr kat. 923061 EXFS L200

GTIN / EAN 4013364038905, Nr taryfy celnej (EU): 85369095, Waga brutto: 830.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Ex isolating spark gap of type EXFS L200
Ex isolating spak gap of type EXFS L200
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 200 mm
For flange size: 120 - 230 mm

Brand: DEHN
Type: EXFS L200
Part No.: 923061
or equivalent.

Certyfikaty

Dane techniczne

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	200 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	200 mm
Suitable for flange size	120-230 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923061 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923061.

Idź do sklepu internetowego

Nr kat. 923062 EXFS L300

GTIN / EAN 4013364038912, Nr taryfy celnej (EU): 85369095, Waga brutto: 861.00 g, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

Pliki CAD

Ex isolating spark gap of type EXFS L300
Ex isolating spak gap of type EXFS L300
for hazardous areas (zone 2) with flexible connecting cable, ATEX-certified (2014/34/EU),
for lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 300 mm
For flange size: 220 - 320 mm

Brand: DEHN
Type: EXFS L300
Part No.: 923062
or equivalent.

Certyfikaty

Dane techniczne

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	300 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 54
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	H01N2-D 25 mm²with cable lug and screw / nut (M10)
Cable length	300 mm
Suitable for flange size	220-320 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923062 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923062.

Idź do sklepu internetowego

EXFS KU

Ex isolating spark gap with connecting cables for aboveground and underground installation; with water-proof sheath; can be shortened to keep cables as short as possible.

1 Produkt

Nr kat. 923019 EXFS KU

GTIN / EAN 4013364033177, Nr taryfy celnej (EU): 85369095, Waga brutto: 1.72 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Open PDF

Informacje dodatkowe

Pliki CAD

Ex isolating spark gap of type EXFS KU
Ex isolating spark gap of type EXFS KU for hazardous areas (zone 2)
with connecting cables for aboveground and underground installation
ATEX-certified (2014/34/EU)
For lightning equipotential bonding according to IEC 62305-4
Lightning impulse current (10/350): 50 kA
Class of lightning current carrying capability acc. to EN 50164-3: N
Nominal discharge current (8/20): 100 kA
100% lightning impulse sparkover voltage: <= 2.5 kV
Power frequency sparkover voltage (50Hz): <= 1.2 kV
Cable length: 2x approx. 1500 mm

Brand: DEHN
Type: EXFS KU
Part No.: 923019
or equivalent.

Certyfikaty

Dane techniczne

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Degree of protection	IP 67
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Cable length	2x approx. 1500 mm

Isolating spark gap according to EN 62561-3 / IEC 62561-3	yes
Lightning impulse current (10/350 µs) (I_imp )	50 kA
Class (lightning current carrying capability)	N
Rated power-frequency withstand voltage (50 Hz) (U_wAC )	300 V
Rated impulse sparkover voltage (U_{r imp} )	≤ 2.5 kV
Operating temperature range (T_U )	-20 °C ... +80 °C
Ambient temperature range when used in hazardous areas	-20 °C ... +60 °C
Degree of protection	IP 67
ATEX approvals	DEKRA 11ATEX0146 X
Ex marking according to EN 60079-0 and EN 60079-15: gas	II 3 G Ex nC IIC T4 Gc
IECEx approvals	IECEx DEK 11.0063X
Ex marking according to EN 60079-0	Ex nC IIC T4 Gc
Enclosure length	90 mm
Enclosure diameter	63 mm
Enclosure material	zinc die-cast, plastic
Connecting cable	NYY-J-1x25 mm²
Cable length	2x approx. 1500 mm
Extended technical data:	--------------------
– Nominal discharge current (8/20 µs) (I_n )	100 kA
– Power frequency sparkover voltage (50 Hz) (U_aw )	≤ 1.2 kV

Produkt 923019 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 923019.

Idź do sklepu internetowego

Wyniki wyszukiwania produktów (0)

Wyniki wyszukiwania zawartości (0)

EXFS L / EXFS KU

Szczegóły

EXFS L

Nr kat. 923060 EXFS L100

Produkt 923060 został dodany do notatnika.

Do koszyka dodano produkt 923060.

Nr kat. 923061 EXFS L200

Produkt 923061 został dodany do notatnika.

Do koszyka dodano produkt 923061.

Nr kat. 923062 EXFS L300

Produkt 923062 został dodany do notatnika.

Do koszyka dodano produkt 923062.

EXFS KU

Nr kat. 923019 EXFS KU

Produkt 923019 został dodany do notatnika.

Do koszyka dodano produkt 923019.

EXFS L / EXFS KU

Szczegóły

EXFS L

Nr kat. 923060 EXFS L100

Nie masz uprawnień, by pobrać 923060.stp

Nie masz uprawnień, by pobrać 923060.igs

Nie masz uprawnień, by pobrać 923060.jt

Nie masz uprawnień, by pobrać 923060.dwg

Nie masz uprawnień, by pobrać 923060m_D.dxf

Produkt 923060 został dodany do notatnika.

Do koszyka dodano produkt 923060.

Nr kat. 923061 EXFS L200

Nie masz uprawnień, by pobrać 923061.stp

Nie masz uprawnień, by pobrać 923061.igs

Nie masz uprawnień, by pobrać 923061.jt

Nie masz uprawnień, by pobrać 923061.dwg

Nie masz uprawnień, by pobrać 923060m_D.dxf

Produkt 923061 został dodany do notatnika.

Do koszyka dodano produkt 923061.

Nr kat. 923062 EXFS L300

Nie masz uprawnień, by pobrać 923062.stp

Nie masz uprawnień, by pobrać 923062.igs

Nie masz uprawnień, by pobrać 923062.jt

Nie masz uprawnień, by pobrać 923062.dwg

Nie masz uprawnień, by pobrać 923060m_D.dxf

Produkt 923062 został dodany do notatnika.

Do koszyka dodano produkt 923062.

EXFS KU

Nr kat. 923019 EXFS KU

Nie masz uprawnień, by pobrać 923019.stp

Nie masz uprawnień, by pobrać 923019.igs

Nie masz uprawnień, by pobrać 923019.jt

Nie masz uprawnień, by pobrać 923019.dwg

Nie masz uprawnień, by pobrać 923019m_E.dxf

Produkt 923019 został dodany do notatnika.

Do koszyka dodano produkt 923019.
