UNI Earthing Clamps

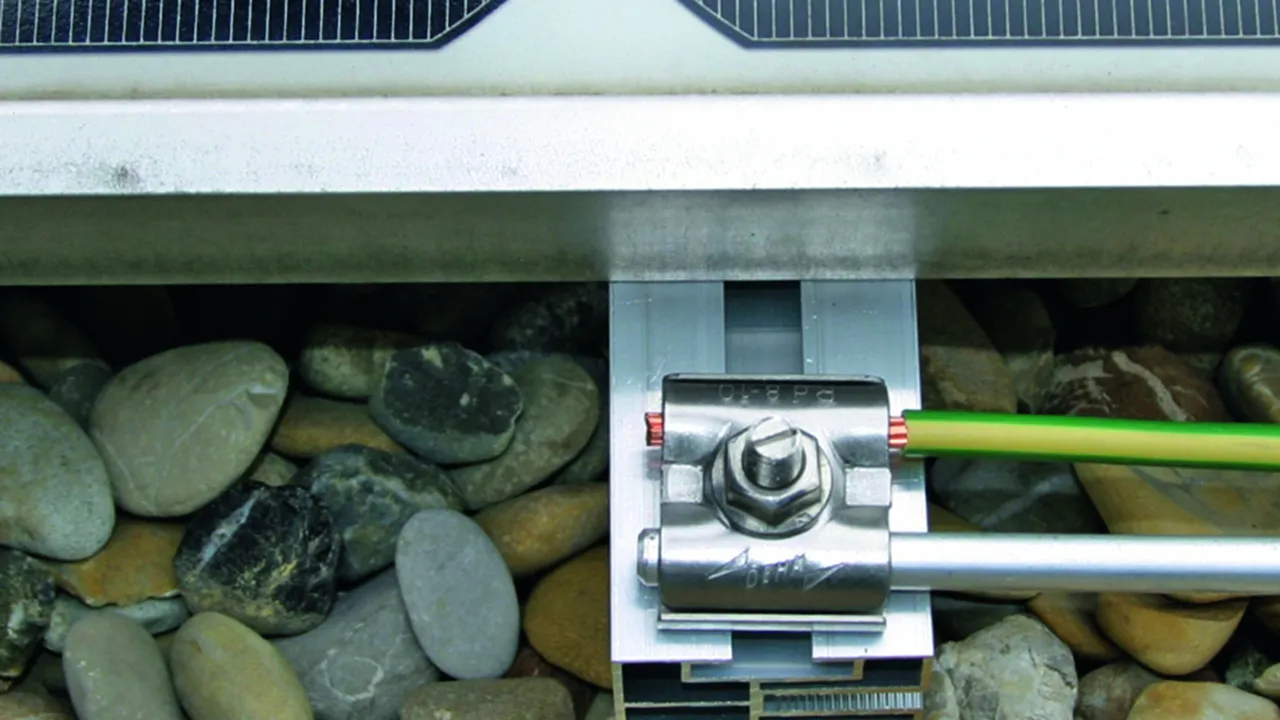

For integrating the mounting systems, e.g. of PV installations into the functional equipotential bonding / functional earthing (possibly black conductor) and lightning equipotential bonding according to IEC/EN 62305-3.
The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.

With M8 hammer-head bolt and self-locking nut

2 Produkty

Nr kat. 540249 UEK 8.10 AQ4 50 HKSM8X25 V2A

GTIN / EAN 4013364512320, Nr taryfy celnej (EU): 85359000, Waga brutto: 59.02 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with StSt M8x25 mm hammer-head bolt
Earthing clamps for incorporating the
mounting systems, e.g. of PV systems,
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M8x25 mm screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM8X25 V2A
Part No.: 540249
or equivalent.



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt M8 x 25 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540249 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540249.

Idź do sklepu internetowego

Nr kat. 540250 UEK 8.10 AQ4 50 HKSM8 V2A

GTIN / EAN 4013364138650, Nr taryfy celnej (EU): 85359000, Waga brutto: 61.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with StSt M8x30 mm hammer-head bolt
Earthing clamps for incorporating the
mounting systems, e.g. of PV systems,
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M8x30 mm screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM8 V2A
Part No.: 540250
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw hammer-head bolt M8 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540250 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540250.

Idź do sklepu internetowego

With M10 hammer-head bolt and self-locking nut

2 Produkty

Nr kat. 540260 UEK 8.10 AQ4 50 HKSM10 V2A

GTIN / EAN 4013364138667, Nr taryfy celnej (EU): 85359000, Waga brutto: 61.60 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earthing clamp with hammer-head bolt, StSt
Earthing clamps for incorporating the mounting systems,
e.g. of PV systems, in the functional equipotential bonding/functional
earthing and lightning equipotential bonding
With M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSM10 V2A
Part No.: 540260
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt (23 x 11 mm), M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540260 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540260.

Idź do sklepu internetowego

Nr kat. 540262 UEK 8.10 AQ4 50 HKSBM10 V2A

GTIN / EAN 4013364449237, Nr taryfy celnej (EU): 85359000, Waga brutto: 79.50 g, Jednostka opakowaniowa: 50.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with StSt hammer-head bolt
Earth clamps for incorporating the mounting systems
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
with M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: UEK 8.10 AQ4 50 HKSBM10 V2A
Part No.: 540262
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw Hammer-head bolt (31 x 13 mm), M10 x 30 mm
Material of screw / nut StSt
Standard EN 62561-1
*) For exact assignment, see test certificate.

Produkt 540262 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540262.

Idź do sklepu internetowego

With M10 truss head screw and self-locking nut with serrated bearing

1 Produkt

Nr kat. 540263 KP AQ4 50 DUL 8.10 VKL11 FRSM10 V2A

GTIN / EAN 4013364449244, Nr taryfy celnej (EU): 85359000, Waga brutto: 80.76 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for incorporating the mounting systems
in the functional equipotential bonding/functional earthing
and lightning equipotential bonding
with M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL11 FRSM10 V2A
Part No.: 540263
or equivalent.

Certyfikaty



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2
Screw eM10 x 35 mm
Material of screw / nut StSt

Produkt 540263 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540263.

Idź do sklepu internetowego

Contact plate and double clamp (separate) with square hole for M8 screw

1 Produkt

Nr kat. 540251 KP AQ4 50 DUL 8.10 VKL9 V2A

GTIN / EAN 4013364138674, Nr taryfy celnej (EU): 85359000, Waga brutto: 37.88 g, Jednostka opakowaniowa: 100.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for integrating
the mounting systems, e.g. of
PV systems, in the
functional equipotential bonding/functional earthing
and lightning equipotential bonding
Without M8 screw and nut
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL9 V2A
Part No.: 540251
or equivalent.



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2

Produkt 540251 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540251.

Idź do sklepu internetowego

Contact plate and double clamp (separate) with square hole for M10 screw

1 Produkt

Nr kat. 540261 KP AQ4 50 DUL 8.10 VKL11 V2A

GTIN / EAN 4013364138681, Nr taryfy celnej (EU): 85359000, Waga brutto: 36.52 g, Jednostka opakowaniowa: 100.00 pc(s)

Rysunki

Informacje dodatkowe

UNI earth clamp with contact plate and double clamp, StSt
Earth clamps for integrating
the mounting systems, e.g. of
PV systems, in the
functional equipotential bonding/functional earthing
and lightning equipotential bonding
With M10 screw and self-locking nut with serrated bearing
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection (solid / stranded): 4-50 mm2

Brand: DEHN
Type: KP AQ4 50 DUL 8.10 VKL11 V2A
Part No.: 540261
or equivalent.



Dane techniczne

Material of clamp StSt
Clamping range Rd 8-10 mm
Connection (solid / stranded) 4-50 mm2

Produkt 540261 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 540261.

Idź do sklepu internetowego
