Conductor Holders for HVI Conductor in Ex Areas

Operators of facilities with potentially explosive atmospheres are obligated to specify these facilities/structures according to the different hazardous areas. For these facilities lightning has to be considered as potential source of ignition. National regulations on health and safety at work require a documentation of the protection against explosion, with a specification of the particular hazardous areas.

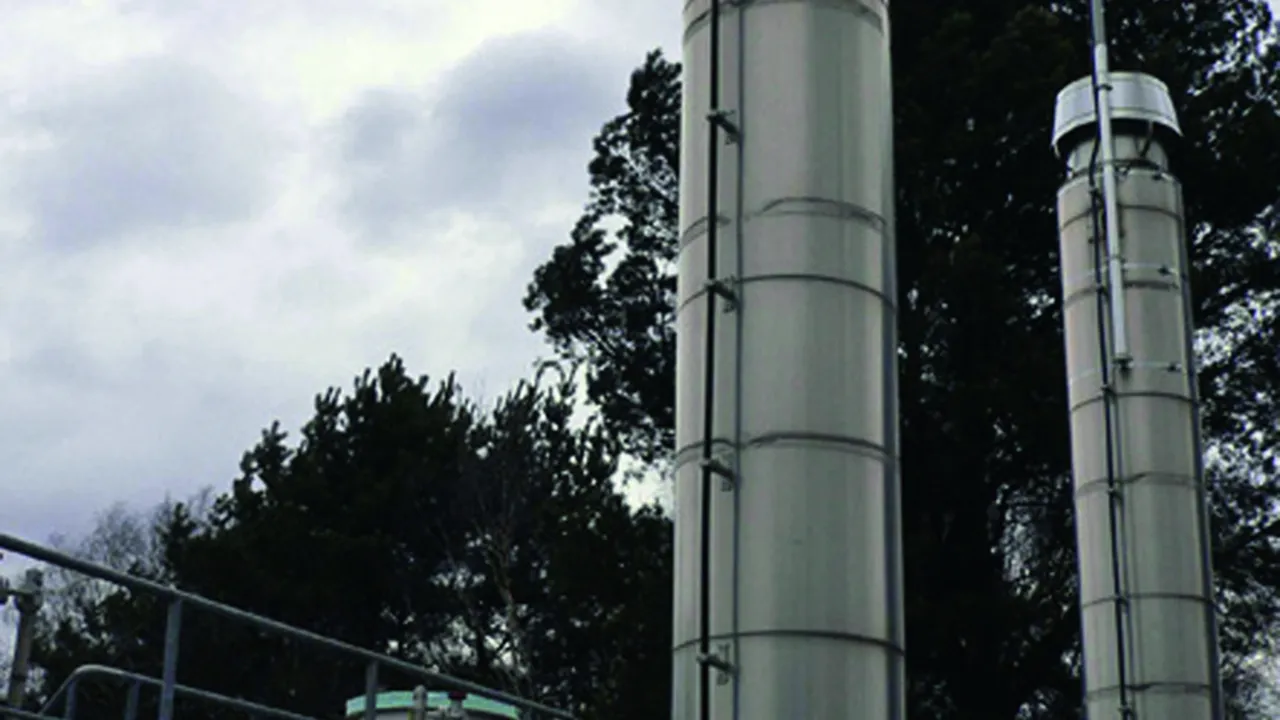

HVI Conductor for installation in explosion hazardous areas Ex zone 1 (gases, vapours, mists) as well as Ex zone 21 (dusts). The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI Conductor.

Szczegóły

Schematic illustration – installation in Ex zones 1 and 21 on a metal facade.
lorem ipsum
lorem ipsum
lorem ipsum

HVI Ex W70 holder

For fixing to metal structural parts (façades) in Ex zones 1 and 21.

1 Produkt

Nr kat. 275440 LH ZS 20 EX W70 BP V2A

GTIN / EAN 4013364146914, Nr taryfy celnej (EU): 85389099, Waga brutto: 164.60 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Conductor holder for HVI Conductors in hazardous areas, StSt
Conductor holder for HVI Conductors in hazardous areas with spacer (70 mm)
for fixing on metal construction parts (façades) in Ex zones 1 and 21
Conductor support Rd: 20 mm
Fixing: [4x] Ø5.1 / [2x] 7 x 10 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 20 EX W70 BP V2A
Part No.: 275440
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 20 mm
Distance from wall 70 mm
Fixing [4x] Ø5.1 / [2x] 7 x 10 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275440 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275440.

Idź do sklepu internetowego

HVI Ex W200 holder

For fixing to metal structural parts (façades) in Ex zones 1 and 21.

1 Produkt

Nr kat. 275441 LH ZS 20 EX W200 BP V2A

GTIN / EAN 4013364146921, Nr taryfy celnej (EU): 85389099, Waga brutto: 255.60 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder for HVI Conductors in hazardous areas Ex W200, StSt
Conductor holder for HVI conductors in hazardous areas with spacer (200 mm)
for fixing on metal construction parts (façades) in Ex zones 1 and 21
Conductor support Rd: 20 mm
Fixing: [4x] Ø5.1 / [2x] 7 x 10 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 20 EX W200 BP V2A
Part No.: 275441
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 20 mm
Distance from wall 200 mm
Fixing [4x] Ø5.1 / [2x] 7 x 10 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275441 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275441.

Idź do sklepu internetowego

HVI Ex busbar 500

For installing the HVI Conductor with conductor holders HVI Ex W70 holder (Part No. 275 440) on a non-conductive structure, e.g. stone, wood.

1 Produkt

Nr kat. 275498 VS EX 500 V2A

GTIN / EAN 4013364146945, Nr taryfy celnej (EU): 85389099, Waga brutto: 320.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Conductor holder for HVI Conductors in hazardous areas Ex busbar 500, StSt
Connecting brace for installing the HVI Conductor on a non-conductive structure
e.g. stone, wood, using a HVI Ex conductor holder (Part No. 275 440, 275 441)
Material of brace: StSt
Fixing: [4x] Ø5.5 / [2x] 7 x 10 mm
Dimension: 450 x 30 x 3 mm

Brand: DEHN
Type: VS EX 500 V2A
Part No.: 275498
or equivalent.

Certyfikaty



Dane techniczne

Material of brace StSt
Fixing [4x] Ø5.5 / [2x] 7 x 10 mm
Dimension (l x w x d) 450 x 30 x 3 mm

Produkt 275498 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275498.

Idź do sklepu internetowego

HVI Ex P70 holder

For fixing to pipes, e.g. with pipe clamp (Part No. 106 323) in Ex zones 1 and 21.

1 Produkt

Nr kat. 275444 LH ZS 20 EX P70 SBB V2A

GTIN / EAN 4013364244252, Nr taryfy celnej (EU): 85389099, Waga brutto: 173.20 g, Jednostka opakowaniowa: 10.00 pc(s)

Rysunki

Informacje dodatkowe

Conductor holder for HVI Conductors in hazardous areas, StSt
Conductor holder for HVI Conductors in hazardous areas with spacer (70 mm), to be fixed to pipes
e.g. using a pipe clamp (Part No. 106 323, to be ordered separately) in Ex zones 1 and 21
Conductor support Rd: 20 mm
Clamping range of tube: 50-300 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 20 EX P70 SBB V2A
Part No.: 275444
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 20 mm
Distance from wall 70 mm
Clamping range of tube 50-300 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275444 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275444.

Idź do sklepu internetowego

HVI Ex P200 holder

For fixing to pipes, e.g. with pipe clamp (Part No. 106 323) in Ex zones 1 and 21.

1 Produkt

Nr kat. 275442 LH ZS 20 EX P200 SBB V2A

GTIN / EAN 4013364146938, Nr taryfy celnej (EU): 85389099, Waga brutto: 264.00 g, Jednostka opakowaniowa: 10.00 pc(s)

Wcześniejszy produkt

Rysunki

Informacje dodatkowe

Conductor holder for HVI Conductors in hazardous areas Ex P200 holder, StSt
Conductor holder for HVI Conductors in hazardous areas with spacer (200 mm)
for fixing to pipes, e.g. using a pipe clamp (Part No. 106 323, to be ordered separately) in Ex zones 1 and 21
Conductor support Rd: 20 mm
Clamping range of tube: 50-300 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: LH ZS 20 EX P200 SBB V2A
Part No.: 275442
or equivalent.

Certyfikaty



Dane techniczne

Material StSt
Conductor support Rd 20 mm
Distance from wall 200 mm
Clamping range of tube 50-300 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Produkt 275442 został dodany do notatnika.

Idź do notatnika

Do koszyka dodano produkt 275442.

Idź do sklepu internetowego
