DEHNiso Combi Sets

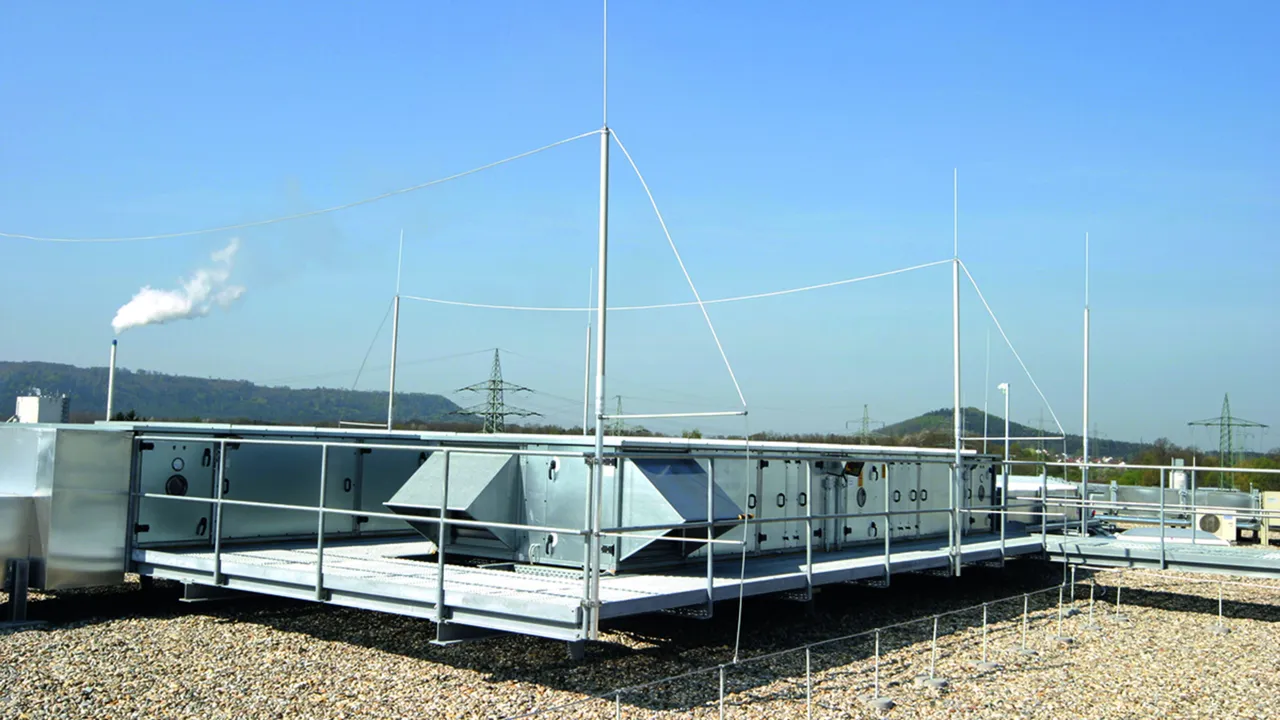

Components for isolated air-termination systems. For protecting large roof-mounted structures such as air-conditioning systems, heat exchangers etc.For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.Tubes and spacers made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, permanent temperature range -50 up to 100 °C.
  • Complete unit ready for installation
  • Low own weight
  • Stable overall design
  • One-screw fixing clamps
  • Various holes for different mounting requirements
The separation distance (insulating clearance) is determined with material factor km = 0.7 (length of the spacer bar).1 m of spacer bar is equivalent to a clearance in air of 0.7 m.The distance between the head of the supporting tube and the upper holder (fixing point) is considered as maximum free length.Distances for spanning of aluminium cables (Part No. 840 050) of max. 10 m (observe the sag) are allowed.

One-piece, total height 4200 mm

Consisting of:
1x air-termination tip StSt, L = 1000 mm (Part No. 105 071)
1x supporting tube GRP/Al, L = 3200 mm (Part No. 105 300)
2x wall mounting bracket StSt (Part No. 105 340)
1x spacer GRP/Al, L = 1030 mm (Part No. 106 331)

1 Produkt

Nr kat. 105440 DICS WB D50.10 4.2M GFK AL V2A

GTIN / EAN 4013364099692, Nr taryfy celnej (EU): 85389099, Waga brutto: 7.64 kg, Jednostka opakowaniowa: 1.00 pc(s)

Rysunki

Informacje dodatkowe

DEHNiso Combi sets, total length: 4200 mm, GRP/Al
DEHNiso Combi sets
Components for isolated air-termination systems for protecting large roof-mounted structures,
e.g. air-conditioning systems, heat exchangers, etc.
For keeping the separation distance from
conductive parts according to EN 62305-3
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Tube, Ø50 mm and spacer bar, Ø16 mm
Material factor km = 0.7
Light grey colour, UV-stabilised
One-piece,
DEHNiso Combi sets are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) and consist of:
1x Al air-termination tip, L = 1000 mm (Part No. 105 071)
1x GRP/Al supporting tube, L = 3200 mm (Part No. 105 300)
2x StSt (V2A) wall mounting bracket (Part No. 105 340)
1x GRP/Al spacer, L = 1030 mm (Part No. 106 331)

Total length: 4200 mm
Number of fixing brackets: 2
Length of supporting tube: 3200 mm
Max. gust wind speed: (Wall mounting max. free length 3,500 mm, Ø8 mm) 232 km/h
Material of supporting tube: GRP / Al
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DICS WB D50.10 4.2M GFK AL V2A
Part No.: 105440
or equivalent.

Certyfikaty



Dane techniczne

Total length 4200 mm
Number of fixing brackets 2
Length of supporting tube 3200 mm
Max. gust wind speed (Wall mounting max. free length 3,500 mm, Ø8 mm) 232 km/h
Material of supporting tube GRP / Al
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)
