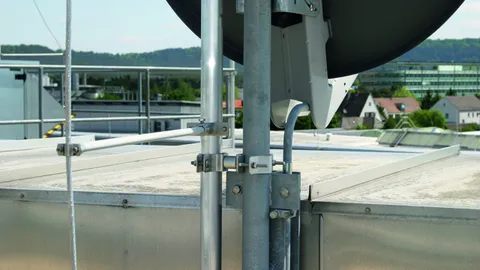

Zestaw DEHNcon-H

System do tworzenia odseparowanych układów zwodów dla instalacji nadawczo-odbiorczych (anteny paraboliczne, naziemne) lub całych budynków lub ich części.

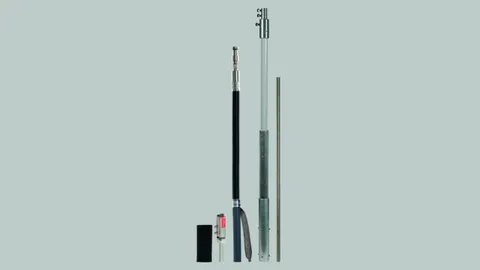

Zestaw DEHNcon-H

Insulated air-termination system for transmitters/receivers (satellite dish, terrestrial antenna) or whole buildings or parts of a building.
Optically appealing due to the HVI light Conductor being installed inside of the supporting tube, reduced size of the supporting tubes (Al pipe 40 x 5 mm / GRP tube 30 x 3 mm) and lower total weight, also suitable for subsequent mounting at antenna poles.
Special interior sealing end provides a flexible StSt strip led out at the lower end of the supporting tube for connection to the equipotential bonding system of the building.

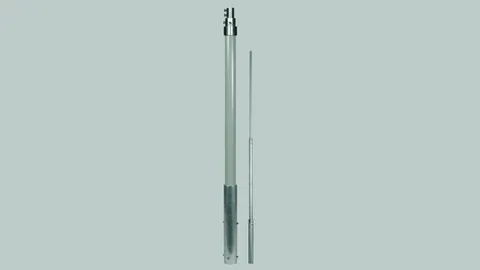

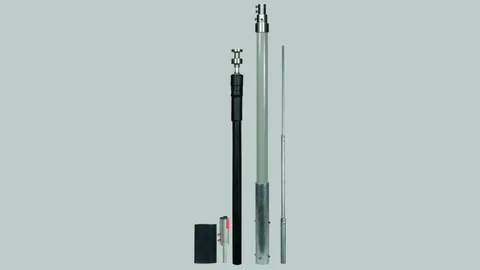

Rury wsporcze DEHNcon-H do przewodu HVI light

Supporting tubes for the HVI light Conductor for on-site assembly, air-termination rod StSt, Ø10 mm.

Elementy przyłączeniowe do systemu DEHNcon-H, przewód HVI light

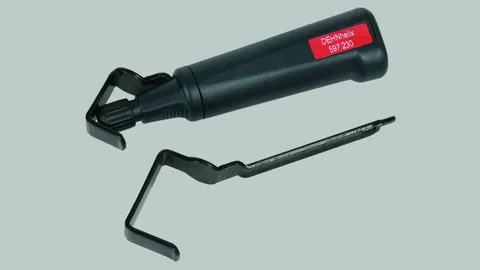

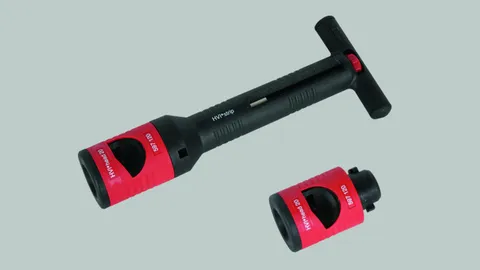

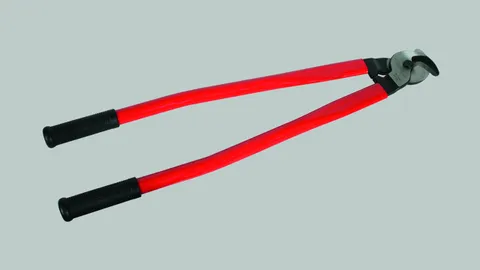

Akcesoria do zestawu DEHNcon-H

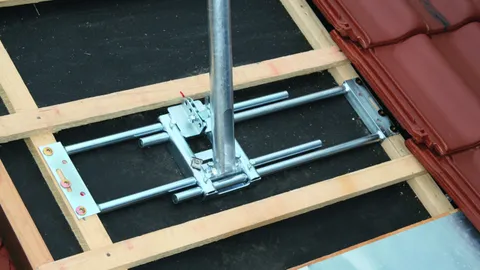

Maszt odgromowy do poddachowego montażu przewodu HVI light

For installation on the mounting bracket for use at rafters.Optically appealing installation of the HVI light Conductor inside of the supporting tube. The HVI light Conductor will be ducted through the supporting tube of the mounting bracket for use at rafters and installed in the area of the counter-battens/roof battens.Advantages:
  • Sub-roof installation – not visible
  • Only the supporting tube is visible
  • No mechanical loading e.g. by snow

Rura wsporcza DEHNcon-H do przewodu HVI light, montaż poddachowy

Supporting tube for HVI light Conductor for on-site assembly, air-termination rod StSt, Ø10 mm.

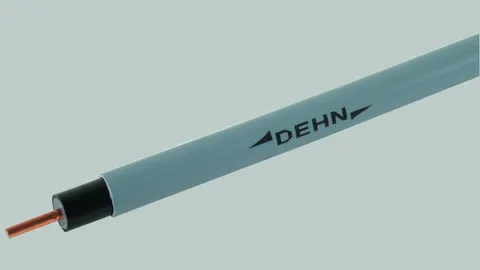

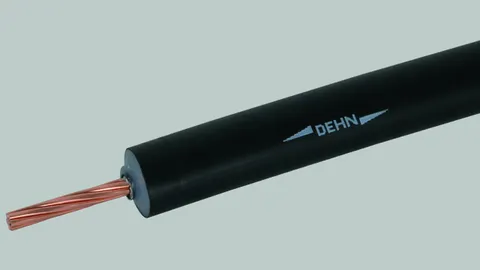

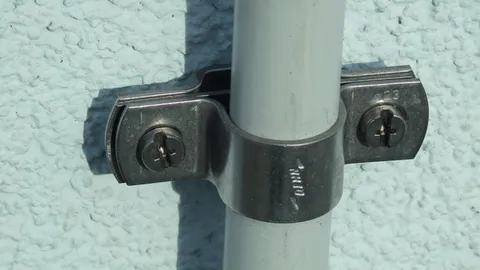

Przewód HVI light

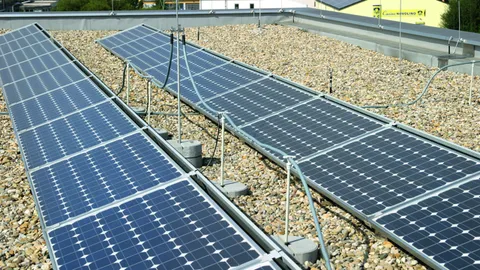

System for keeping the separation distance e.g. on flat roofs. The high-voltage-resistant insulatation of the HVI light Conductor avoids an uncontrolled sparkover e.g. through the roof covering to metal or electric parts underneath.

Applicable up to an equivalent separation distance s ≤ 45 cm (in air) or s ≤ 90 cm (solid material).

Element przyłączeniowy do DEHNcon-H, przewód HVI light

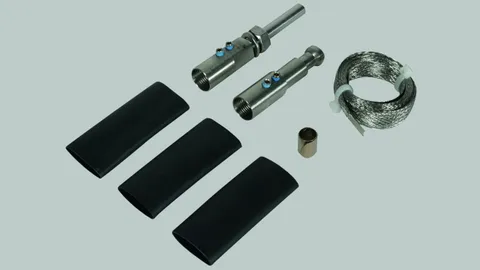

Connection kit for sealing the HVI light Conductor at both ends for implementing the adjustment range of the conductor in the supporting tube (head piece) and connection element for connection to other parts of the external lightning protection or earth-termination system (incl. EB connection cable, constant force spring and three heat-shrinkable sleeves).

Maszt odgromowy do poddachowego montażu przewodu HVI

For installation on the mounting bracket for use on rafters.Optically adjusted installation of the HVI light Conductor inside of the supporting tube. The HVI light Conductor will be ducted through the supporting tube of the mounting bracket for use on rafters and installed in the area of the counter-battens / roof battens.Advantages:
  • Sub-roof installation – not visible
  • Only the supporting tube is visible
  • No mechanical loading e.g. by snow

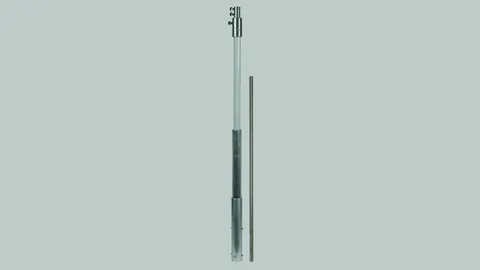

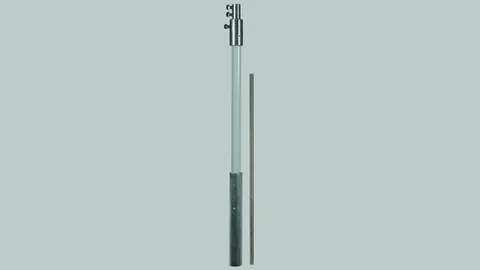

Rura wsporcza DEHNcon-H do przewodu HVI, montaż poddachowy

Supporting tube for HVI Conductor for on-site assembly, air-termination rod Al, Ø22 / 16 / 10 mm.

Przewód HVI / HVI long

High-voltage-resistant, insulated down conductor for keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.

Applicable up to an equivalent separation distance s ≤ 75 cm (in air) or s ≤ 150 cm (solid material).

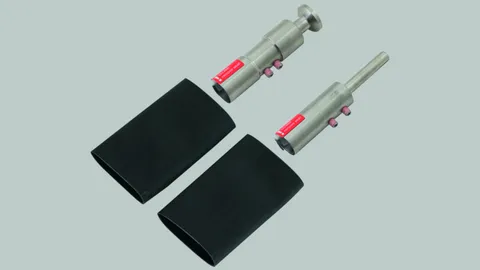

Element przyłączeniowy do zestawu DEHNcon-H, przewód HVI

Connection elements for sealing the HVI long Conductor at both ends for implementing the sealing end of the conductor inside of the supporting tube (head piece) and connection element for connection to other parts of the external lightning protection system or earth-termination system (incl. two heat-shrinkable sleeves).

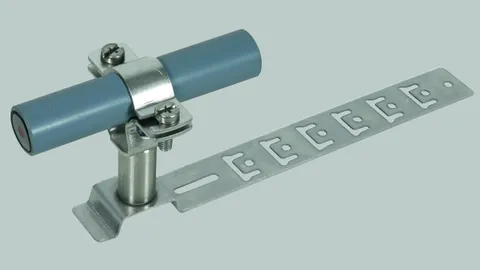

Wspornik montażowy na krokiew

For side fixing of the
  • DEHNcon-H supporting tube (Ø40 mm)
  • HVI Conductor inside of the supporting tube (Ø50 mm)
as well as for attaching and fixing of the supporting tubes and for the sub-roof installation of the HVI Conductor or HVI light Conductor.Note: Mounting conditions on-site must be clarified with the building constructor. More information on max. gust wind speeds at www.dehn-international.com

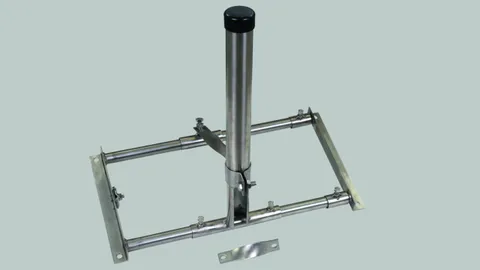

Wspornik montażowy na dach metalowy

Mounting bracket StSt for installation on metal roofs for installing HVI air-termination systems or air-termination rods:

Mounting bracket for vertical mounting of air-termination systems on metal roofs with an inclination of max. 53°.

For fastening of air-termination rods D40 as well as attachment of DEHNcon-H systems with conductor installed inside.

Wspornik do montażu na dachach dwuspadowych i dachach metalowych
